Product Details:
|
| Product Name: | US Stock Led Area Light | Watts: | 150W,200W,300W |
|---|---|---|---|
| IP: | IP65 | CCT: | 6500K |
| Warranty(years): | 5 | THD: | <10% |
| PF: | >0.95 | Surge Protection: | 6KV |
| High Light: | 6500K Outside Area Light,Durable 150Lm/W Outside Area Light,Die Casting LED Shoebox Area Light |
||

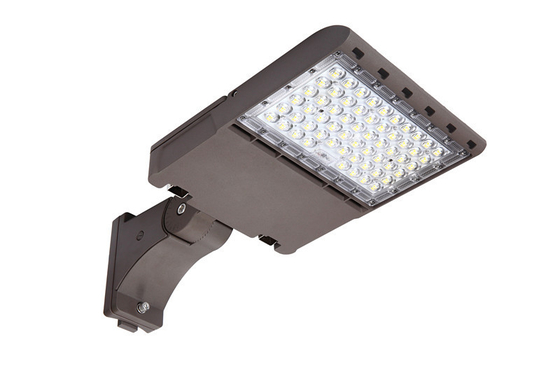

Fast Delivery Within 24 Hours Die-Casting Street Light
Introduction:
ZCH LED area light is a device,this street lights which are consist of aluminum alloy frame, LED light source model and driver.It can be a replacementof HID and other traditional light fixture, provided with higher efficacy, a longer lifetime 50,000H at least or even more up to 100,000H and very lower breakdown opportunity, higher reliability and better cost than any light before. The high-performance,IlP65-rated luminaire delivers a minimum of 150Lm/W, providing significant energy savings whileremaining durable in the field.
Product Description:
|
Typical Power (W) |
Input voltage (V) |
Luminous (Lumen) |
Efficacy (LM/W) |
Typical CCT (K) |
Ra | Beam Angle | LED Chip | PF | IP |
Dimension (L*W*H) |
| 60W | AC100-277V AC277-480V | 9000 | 150 | 3000/4000/5000/5700/6500 | 70 | TYPE3/TYPE4/TYPE5 | 3030 | > 0.95 | IP65 |
435*277*75mm 17.1*10.9*3.0” |
| 80W | AC100-277V AC277-480V | 12000 | 150 | 3000/4000/5000/5700/6500 | 70 | TYPE3/TYPE4/TYPE5 | 3030 | > 0.95 | IP65 | |
| 100W | AC100-277V AC277-480V | 15000 | 150 | 3000/4000/5000/5700/6500 | 70 | TYPE3/TYPE4/TYPE5 | 3030 | > 0.95 | IP65 | |
| 120W | AC100-277V AC277-480V | 18000 | 150 | 3000/4000/5000/5700/6500 | 70 | TYPE3/TYPE4/TYPE5 | 3030 | > 0.95 | IP65 | |
|
150W (Small) |
AC100-277V AC277-480V | 22500 | 150 | 3000/4000/5000/5700/6500 | 70 | TYPE3/TYPE4/TYPE5 | 3030 | > 0.95 | IP65 | |
|
150W (Medium) |
AC100-277V AC277-480V | 22500 | 150 | 3000/4000/5000/5700/6500 | 70 | TYPE3/TYPE4/TYPE5 | 3030 | > 0.95 | IP65 |
520*277*75mm 20.5*10.9*3.0” |
| 200W | AC100-277V AC277-480V | 30000 | 150 | 3000/4000/5000/5700/6500 | 70 | TYPE3/TYPE4/TYPE5 | 3030 | > 0.95 | IP65 | |
| 240W | AC100-277V AC277-480V | 36000 | 150 | 3000/4000/5000/5700/6500 | 70 | TYPE3/TYPE4/TYPE5 | 3030 | > 0.95 | IP65 |
600*322*75mm 23.6*12.7*3.0” |
| 300W | AC100-277V AC277-480V | 45000 | 150 | 3000/4000/5000/5700/6500 | 70 | TYPE3/TYPE4/TYPE5 | 3030 | > 0.95 | IP65 |
Fast Delivery Within 24 Hours Die-Casting Street Light
Application:
Area Lights series can be widely used in Parking lot ,Urban roads, Industrial areas, Residential areas,Sidewalks,
Schools, Gardens and etc.
SL series Area for light provide 3 basic dimension. The small size for max 150W , the medium size for max 200W , the large size for max 300W .
There are 5 installation brackets for different application, such as round/square pole, wall mounting, and can adjust the beam angle accordingly.
Ordering information:
|
Electronic chart. |
Optical chart. |
Instruction chart. |
Smart function |
||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
|
Rated power |
Input voltage |
Driver brand |
Dimming |
CCT |
CRI |
LED CHIP |
BeamAngle |
Dimension |
Color |
Installation |
Lens |
Surge Protector |
Sensor |
|
60W 80W 100W 120W 150W 200W 240W 300W |
L- 100~277V H-277~480V |
1-SOSEN 2-MEANWELL 5-FAHOLD |
Blank-No dimmable D-Dimmable |
27K-2700K 30K-3000K 40K-4000K 50K-5000K 57K-5700K 60K-6000K 65K-6500K |
70-Ra70 80-Ra80 |
1 Seoul3030 2 Tongyifang3030 3 Osram3030 |
T1-TYPE 1 T2-TYPE 2 T3-TYPE 3 T4-TYPE 4 T5-TYPE 5 |
S3/S4 M3/M4 L3/L4 |
BK-Black BR-Brown WH-White |
Blank-Non- bracket A-Bracket A C-Bracket C D-Bracket D E-Bracket E F-Bracket F |
Blank-PC G-Glass |
Blank-No surge protector SP-Surge protector |
Blank-Sensorless L-Photocell M-Motion sensor S-Photocell+motion sensor |
