600x600 110LM/W SMD5050 Led Ceiling Panel Lights 36w Dimmable

Certification
China ZCH Technology Group Co.,Ltd certification
China ZCH Technology Group Co.,Ltd certification
Customer Reviews
Devoting Creates Value.Thanks for ZCH Group's supporting and guidence. With your help and instruction, I win more market share.

—— Jean-Philippe Illarine

The shipment has arrived.I reviewed it and quality everything satified. I appreciate your follow up on the shipment and as always the hard work of you.

—— Michael Gelb

I'm Online Chat Now

600x600 110LM/W SMD5050 Led Ceiling Panel Lights 36w Dimmable

600x600 110LM/W SMD5050 Led Ceiling Panel Lights 36w Dimmable
600x600 110LM/W SMD5050 Led Ceiling Panel Lights 36w Dimmable

Large Image :  600x600 110LM/W SMD5050 Led Ceiling Panel Lights 36w Dimmable

Product Details:
Place of Origin: Shenzhen China
Brand Name: ZCH
Certification: CE,Rohs,SAA,C-tick
Model Number: ZCH-PL
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: As negociated
Packaging Details: 1pc/opp bag.
Delivery Time: 2-7 days
Payment Terms: T/T, Western Union
Supply Ability: 100000PCS per month

600x600 110LM/W SMD5050 Led Ceiling Panel Lights 36w Dimmable

Description
Product Name: 600x600 Panel Lights Light Source: LED
Input Voltage(v): AC85-265V Lamp Body Material: Aluminum,PC
Warranty(years): 3,2,5 Certificates: CE Rohs
Ip Rating: IP20,indoor Remote Control: Yes
High Light:

SMD5050 Led Ceiling Panel Lights

,

110LM/W Led Ceiling Panel Lights

,

36w Dimmable LED Panel Lights

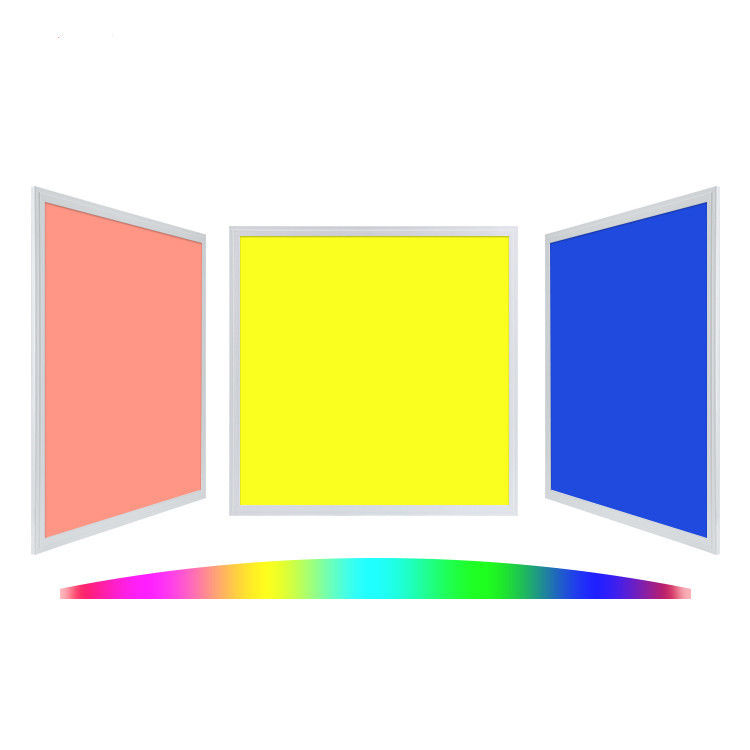

1.RGB dimmable square flat LED panel light 600*600 36w,unit size:595*595*10mm.



2.Pkgs. Size:660*620*35mm, Carton Size:68*64*19cm, G.W.:28.50kg, 5pcs/Carton.

3.Package Content:1X LED Panel Light,1X LED Driver,K3K Cardboard Box,K=K Carton.

4.Welcome your Logo Printed On The Lamp Or Packing Box For Your Brand Marketing.



Dimmable 24V Rgbw Led Panel 600x600 Led Ceiling Lights



Product Details:



Type
ZCHPL-036R
ZCHPL-050R
ZCHPL-068R
Voltage
DC12-24V
Watt
36w
50w
68w
Size
600*600
300*1200
600*1200
Chip
SMD5050
CCT
RGB
Lumen
110LM/W
Materials
Aluminum+pmma
CRI
80
IP
IP44
Installation
Embedded / Mounted / Suspended
Warranty
5 year



Product Features:



  • Energy saved up to 60%.high brightness, even lighting output
  • Edge light, bright, solf and comfortable luminosity
  • No start-up t ime, no flickering, no humming.
  • New high efficiency constant current driver.
  • No electrical wave,conforming to CE.
  • Distinguish circuit design ensures no interference with any LEDs when a single one malfunctions
  • Green environmental protection,lead-free material,conforming to ROHS.



 Product pictures:

    600x600 110LM/W SMD5050 Led Ceiling Panel Lights 36w Dimmable 0

    600x600 110LM/W SMD5050 Led Ceiling Panel Lights 36w Dimmable 1

   600x600 110LM/W SMD5050 Led Ceiling Panel Lights 36w Dimmable 2

   600x600 110LM/W SMD5050 Led Ceiling Panel Lights 36w Dimmable 3



Application of RGB+Color Temperature adjustable panel light

--Dancing pubs

--Hotels, Bedroom

--Furniture lighting

--Window gallery lighting

--Holiday lighting



 600x600 110LM/W SMD5050 Led Ceiling Panel Lights 36w Dimmable 4



 Strictly aging test and Vibrantion test 8 hours before shipment.



 600x600 110LM/W SMD5050 Led Ceiling Panel Lights 36w Dimmable 5



 Packing:

  LED panel light ceiling , usually we recommend to use nature packing; at the same time, we also provide color packing according to customer's design.

600x600 110LM/W SMD5050 Led Ceiling Panel Lights 36w Dimmable 6



 Watt size N.W(KGS) G.W(KGS) Pcs/Ctn GW/Ctn(kgs) Packing Size(cm)
 36W  595*595mm         2.5        2.8      5         15.5       67*24*69
 50W  295*1195mm         2.8        3.1      5           17      130*38*38
68W  595*1195mm         6.1        6.5      5           34      130*30*70





Shipping Details :

According to different products and different order volume, there have four types for customer to choose shipping way.
Shipping type
Shipping time
Shipping cost
Remark
By Express
3-5 workdays
Highest
Time Urgent, small order/sample order
By Air
4-9 workdays
Medium
Time no very urgent, small wholesales
By Train
10-20 workdays
Lower
Asian and Europen Railway joint Transport
By Sea
Depend on port distance
Lowest
Tme enough, bulk purchase





Installation Precautions :

1:  Please check the lamp carefully before installing.
2:  Ensure the power is offer before wiring and installation.
3:  To help ensure it's longevity, please do not use this lamp in corrosive conditions.
4:  If there is any damage to the lamp cord, please cut off the power and stop using it immediately.
5:  Please do not retrofit the lamp within the warranty period.
6:  To ensure normal work of the lamp, please use the voltage indicated on the packing.



Payment and shipping:



1.Payment method:credit card, e-checking, T/T,western union, moneygram, L/C,paypal.


2.Shipment method:air express,sea freight,railway to europe or appointed by customer.


3.Leading time:1~2 days for the lamps in stock,4-12 daysf for OEM order or bulk order.


4.Delivery time:express:3-7 days,sea freight:30-35 days,railway to europe:20-25 days.



FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: Sample needs 3-5 days, Wthin Moq need 5-7 days, other quantity need to be discuss.

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-3-5 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
