Product Details:
|
| Product Name: | Led Linear High Bay Light | Light Source: | Philip LED |
|---|---|---|---|
| Led Light Source: | SMD | Input Voltage(v): | AC85-265V |
| Lamp Body Material: | Aluminum, | Warranty(years): | 5 |
| Cri (ra>): | 80,90 | Ip Rating: | IP65 |
| Working Lifetime(hour): | 50000 | Beam Angle: | 60°，90° |
| Color Temperature(cct): | Cool White,Pure White,Warm White,2800-7000K | Working Temperature(℃): | -20 - 50 |
| Power: | 100W 150W 200W 250W 300W | ||
| Highlight: | 60000lm Industrial Bay Lights,500W Industrial Bay Lights,60000lm Industrial Warehouse Pendant Light |
||

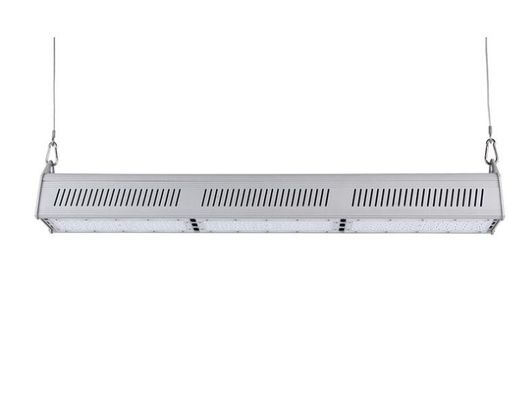

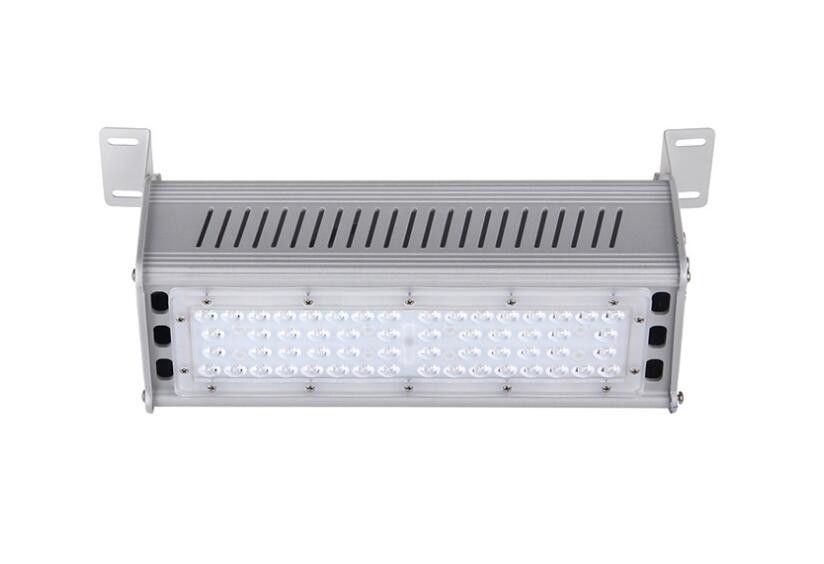

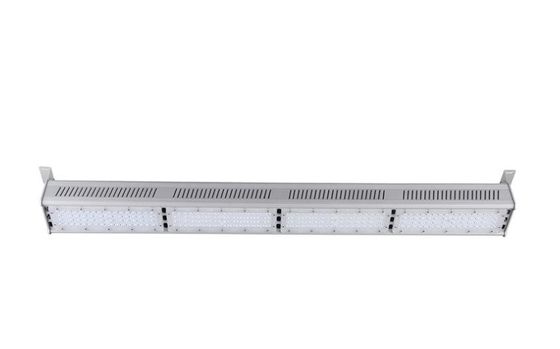

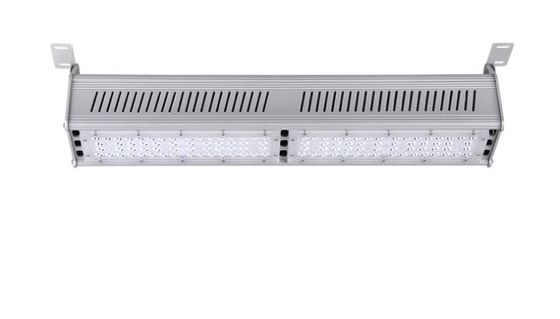

5 Years Warranty Motion Sensor Led Lighting Fixtures Warehouse Hanging 2ft 3ft 4ft 5ft Linear LED High Bay Light
Specification:
| Model | ZCH-LHL20-50 | ZCH-LHL20-100 | ZCH-LHL20-150 | ZCH-LHL20-200 | ZCH-LHL20-201 | ZCH-LHL20-300 | ZCH-LHL20-400 | ZCH-LHL20-500 |
| Input Voltage | 100-305VAC | |||||||
| Power | 50W | 100W | 150W | 200W | 250W | 300W | 400W | 500W |
| Lumens | 5500-6000lm | 11000-12000lm | 16500-18000lm | 22000-24000lm | 27500-30000lm | 33000-36000lm | 44000-48000lm | 55000-60000lm |
| CRI | Ra>80 | |||||||
| Power Factor | >0.95 | |||||||
| Input Voltage | 100-305VAC | |||||||
| Light efficiency | 110-120lm/W | |||||||
| LED chip | LUMILEDS LED chips | |||||||
| LED driver brand | UNIKE Quality driver ( MEANWELL / INVENTRONICS / SOSEN Driver Option) | |||||||
| I Prate | IP65 | |||||||
| Housing material | Excellent Aluminum +PC lens | |||||||
| Work temperature | -30°C ~ +50°C | |||||||
| Life span | 50000 hours | |||||||
| warranty | 5 -7years | |||||||
Advantage
1. High-efficiency aluminum radiator, turbo fan inside for 200W model.
2. Both isolated and none isolated power supply available.
3. Thick aluminum housing with powder coating finish.
4 90° beam angle lens.
4. Competitive price on the market.
Product Details:
Application:
LED linear high bay fixtures are ideal for Warehouses, Manufacturing Facilities Gymnasi-ums, Aviation Hangars, Convention Centers, Big Box Retail Stores, Cold Storage Facilities.
